54 62 000 Activating/retracting the rollover protection bar

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of injury!
When a rollover protection bar is activated mechanically, only one person may be present underneath the rollover protection bar.

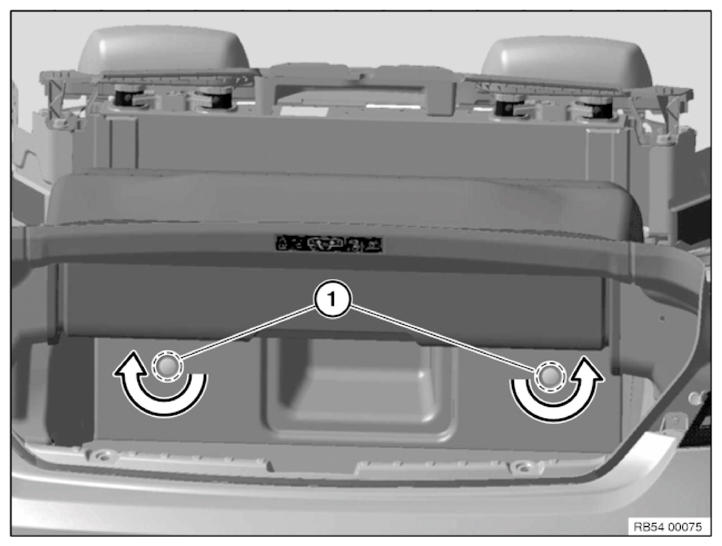

Fig 1: Turning Sealing Caps From Luggage Compartment Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Mechanically triggering rollover bar:

A mechanical emergency release is performed via the luggage compartment.

Stow (open) soft top in soft top compartment.

Lift out sealing caps (1) from luggage compartment trim panel.

Using Torx key TX40, emergency unlock rollover protection by applying force against the pressure spring force (direction of arrow).

IMPORTANT: Rollover protection bar must be fully extended.
Check at arrow on rollover protection bar.

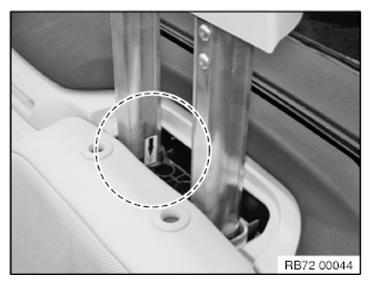

Fig 2: Identifying Rollover Bar

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: When retracting, make sure rollover protection bar engages in lower limit position.
Relieve rollover protection bar slowly!

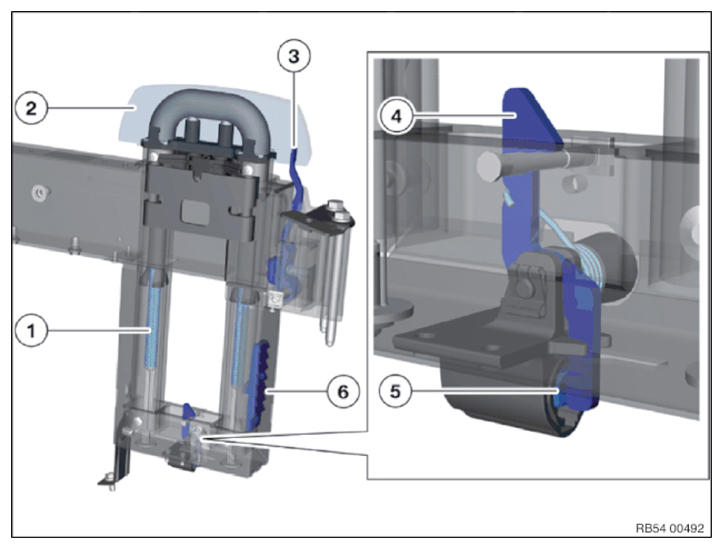

Fig 3: Overview Of Rollover Protection System

Courtesy of BMW OF NORTH AMERICA, INC.

Resetting rollover protection system after service

1. Spring

2. Cover

3. Release lever

4. Lock

5. Ignition squib

6. Lock

Press release lever (3) inwards against the active spring force and hold it.

Press rollover protection bar down as far as the limit position until the actuator locks.

NOTE: release lever (3) directly before the actuator locks.

Continue to press the rollover protection bar right down until it engages audibly!
