54 34... Retrofitting fin filler pieces

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove SOFT TOP COVER .

Cover vehicle in working area.

Move soft top into closed position. Rear fins taken off.

All required parts are contained in the repair kit for fin filler piece .

Part Number 54 34 7 345 135

The following operations refer to both fin sides. The description is only given for the left side.

Fig 1: Identifying Filler Piece On Fin

Courtesy of BMW OF NORTH AMERICA, INC.

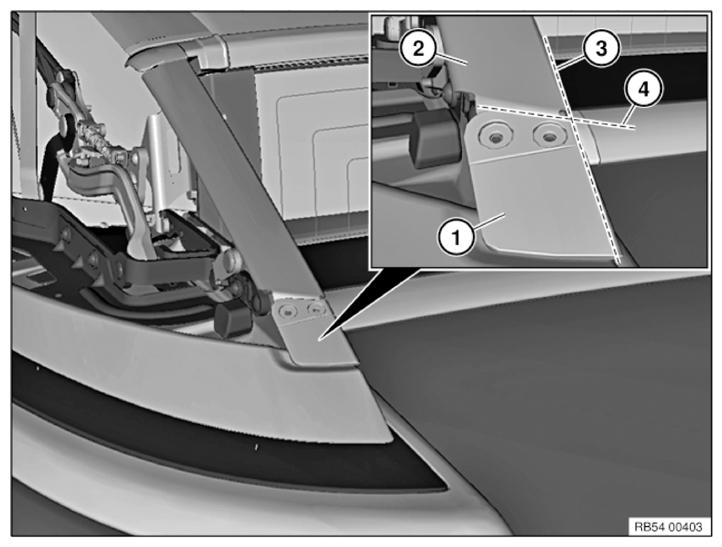

Position filler piece (1) on fin (2).

Inner edge of filler piece must be flush with fin back (3). A ruler, for instance, can be used as auxiliary materials.
Filler piece must be pushed up to start if radius (4) of fin back.

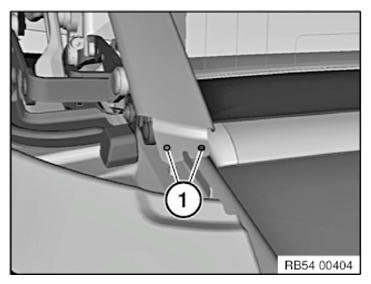

Transfer drilled holes (1) from filler piece to fin.

Fig 2: Identifying Filler Piece Drilled Holes To Fin

Courtesy of BMW OF NORTH AMERICA, INC.

Drill transferred holes (1) on fin.

Diameter: 3, 3 mm

Deburr bore holes (1).

IMPORTANT: Completely remove swarf.

Fig 3: Identifying Bore Holes

Courtesy of BMW OF NORTH AMERICA, INC.

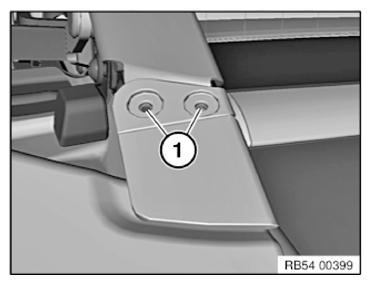

Secure filler piece (2) (1) to fin (3) with 2 rivets.

IMPORTANT: Rivet heads must fit in recess of filler piece.
Make sure there are no parts protruding from rivet. Rivet shank must be completely torn off.

Fig 4: Identifying Filler Piece, Fin And Rivets

Courtesy of BMW OF NORTH AMERICA, INC.
