54 34... Replacing fin filler pieces
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
Remove SOFT TOP COVER in area of fin.
Cover vehicle in working area.
Move soft top into closed position. Rear fins taken off.
All required new parts are contained in the repair kit for fin filler piece .
Vehicles up to production date 18.10.2011:
- Part Number 54 34 7 345 135
Vehicles produced starting in 18.10.2011:
- Part Number 54 34 7 345 136

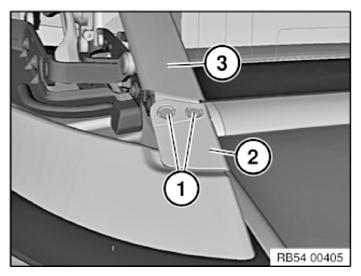

Release rivet connection (1) from filler piece (2) at left and right of fin.
Completely remove rivet residue from vehicle.
Installation note:
Rivet heads must fit in recess of filler piece.
Make sure there are no parts protruding from rivet. Rivet shank must be completely torn off.
