54 34... Overview of soft top sensors
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

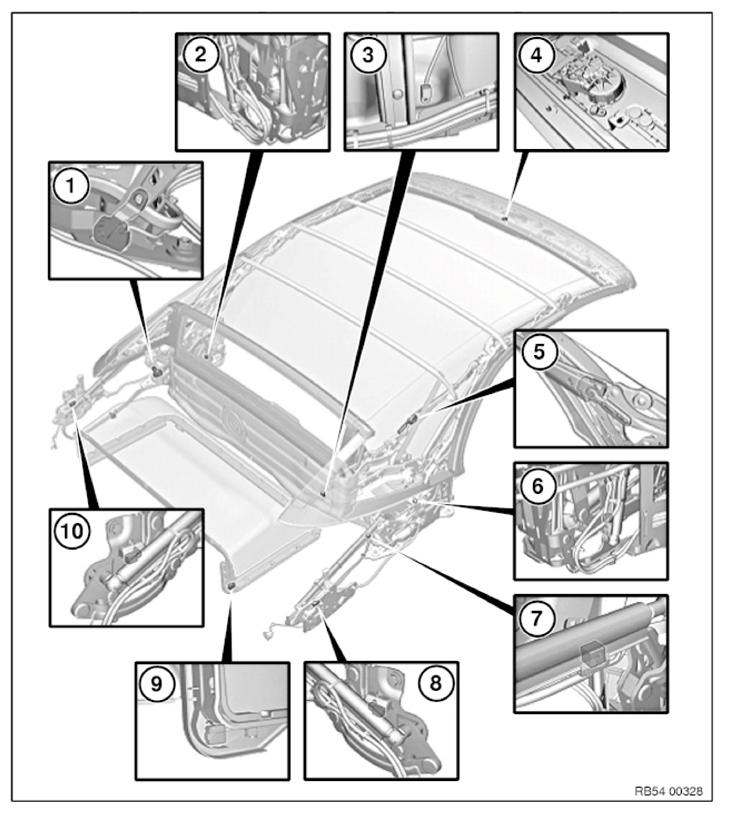

Sensor designation:
| 1 | Angle-of-rotation sensor for main pillar |
| 2 | Hall effect sensor, dead center, fin control, left |
| 3 | Hall effect sensor, rear window open |
| 4 | Hall effect sensor, retaining hook closed |
| 5 | Angle-of-rotation sensor for fin |
| 6 | Hall effect sensor, dead center, fin control, right |
| 7 | Hall effect sensor, soft top compartment lid open |
| 8 | Hall effect sensor, soft top compartment lid closed, right |
| 9 | Microswitch, soft top compartment |
| 10 | Hall effect sensor, soft top compartment lid closed, left |
