54 34... Overview of mechanical components of soft top

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

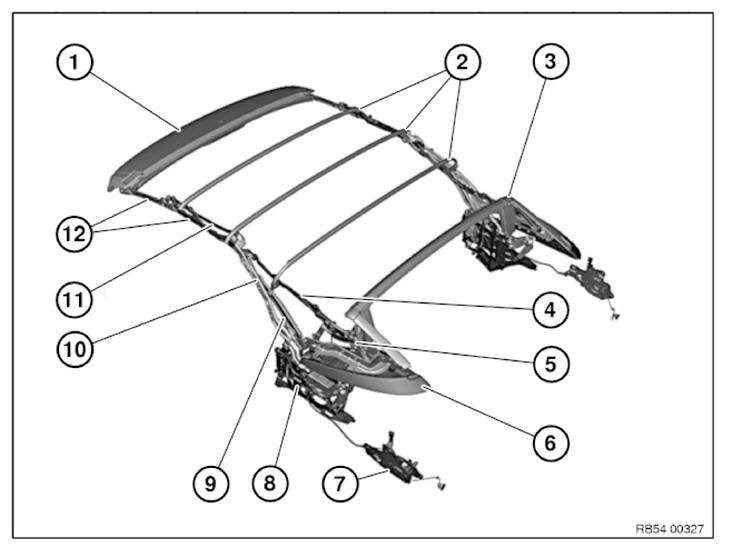

Fig 1: Overview Of Mechanical Components Of Soft Top

Courtesy of BMW OF NORTH AMERICA, INC.

System components of soft top:

1	Front soft top bow
2	Soft top bow
3	Rear soft top bow
4	Upper tension rod, left
5	Lower tension rod, left
6	Fin, left
7	Kinematics box, left
8	Convertible top main bearing, left
9	Main link, left
10	Main pillar, left
11	Rod, left
12	Roof rod, left
