54 34 441 Replacing top angle-of-rotation sensor

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Open convertible top compartment lid until all hydraulic cylinders are completely extended.

Support soft top compartment lid in SERVICE POSITION .

Fig 1: Supporting Soft Top Compartment Lid In Service Position

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (3).

Disconnect cable strap at the soft top frame.

Release screws (1).

Tightening torque 54 34 03AZ .

Remove angle-of-rotation sensor (2).

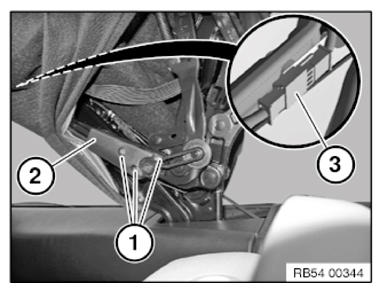

Fig 2: Identifying Angle-Of-Rotation Sensor, Plug Connection, Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Teach-in soft top:

Close soft top.
Only in vehicles built before 09/2011: Briefly release the lock button (< 5 seconds).
Operate closing button for 30 seconds (until LED flashes - LED flashes to indicate that the teach-in procedure is complete)
Release closing button.
