54 34 330 Removing and installing/replacing front cowl panel gasket rail
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Soft top becomes pressureless without a warning signal.
For all repair work, secure soft top with a suitable support tool against collapsing.
Ensure soft top is supported in the middle.
Ignition must remain switched off during the repair work.
Failure to comply with this instruction may result in the hydraulic valves incurring preliminary damage.
For all repair work, secure soft top with a suitable support tool against collapsing.
Ensure soft top is supported in the middle.
Ignition must remain switched off during the repair work.
Failure to comply with this instruction may result in the hydraulic valves incurring preliminary damage.
Release screws in marked area.
Installation note:
Tightening torque 54 34 12AZ .
Observe tightening sequence (1-5).
Apply Loctite to screws.
Remove rail (clamping strip) from gasket.
Installation note:

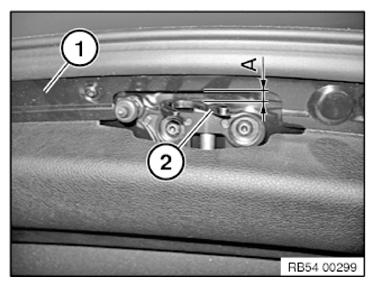

Set clamping strip (1) to lock striker (2).
Prepare a spacer or use a drill with a corresponding diameter.
A. = 9 mm
