54 34 315 Removing and installing power window regulator (rear window)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR WINDOW

Release screws (1).

Remove cover and disconnect drive cable.

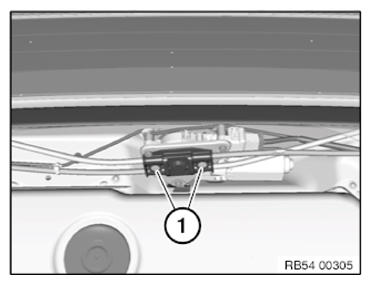

Fig 1: Identifying Power Window Regulator Screws (Rear Window)

G10049085

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Insert guide plate (2) in drive.

Insert drive cable (3) correctly in worm gear drive.

Mount cover and screw on.

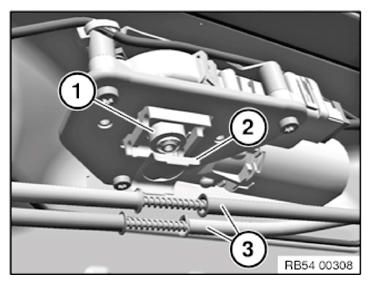

Fig 2: Identifying Guide Plate And Drive Cable

G10049088

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect cable straps at guide tubes for riser cable.

Disconnect cable straps at connector for left and right heated rear window.

Installation note:

Replace cable strap.

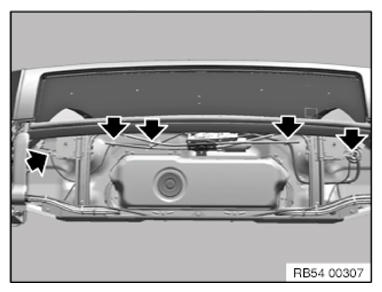

Fig 3: Locating Cable Straps

G10047736

Courtesy of BMW OF NORTH AMERICA, INC.

Release left and right screws (1).

Tightening torque 54 34 05AZ .

Remove complete power window regulator with drive cables.

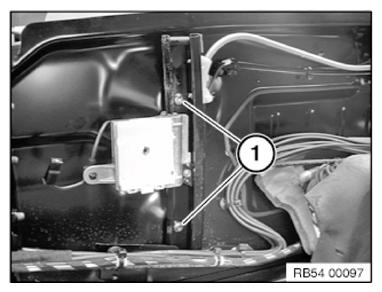

Fig 4: Identifying Power Window Regulator Screws With Drive Cables
