54 34 304 Removing and installing/replacing window guide for rear window

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Open soft top compartment until all hydraulic cylinders are extended.

Support soft top compartment lid in SERVICE POSITION

Fig 1: Identifying Convertible Top Compartment Lid

G04781201

Courtesy of BMW OF NORTH AMERICA, INC.

Gasket (window guide) on soft top fins:

Release screws (1).

Unscrew nuts (2).

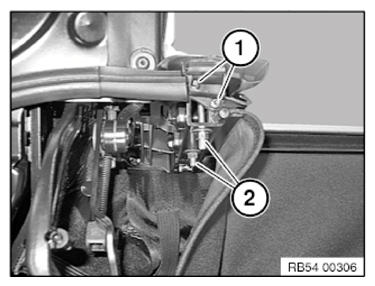

Fig 2: Identifying Gasket (Window Guide), Screws And Nut

G10047823

Courtesy of BMW OF NORTH AMERICA, INC.

Pull soft top cover with threaded bolt (1) out of gasket (2).

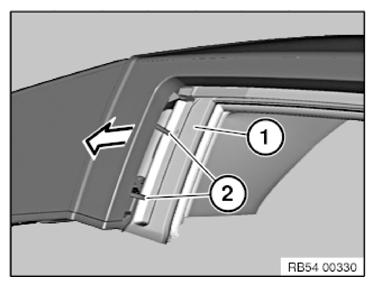

Fig 3: Pulling Soft Top Cover With Threaded Bolt Out Of Gasket

G10047824

Courtesy of BMW OF NORTH AMERICA, INC.

Pull gasket (1) out of window cutout.

Installation note:

Spray corner bow with assembly fluid and attach gasket in corner bow from left, outside to the center.

Use plastic wedge for pressing and visually check lip position.

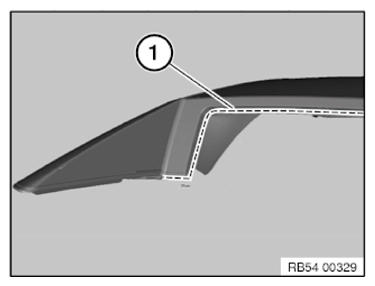

Fig 4: Identifying Window Cutout Gasket

G10047825

Courtesy of BMW OF NORTH AMERICA, INC.
