54 34 140 Removing and installing or replacing the base plate on left or right

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front roof liner cover. See 51 44 150 REPLACE COVER FOR FRONT ROOF LINING (TOP COWL PANEL) .

Release screws (1).

Remove base plate (2).

Fig 1: Identifying Base Plate With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Align the base plate over the centering bore and elongated hole with cylindrical pins Ø 6 mm.

Tightening torque 54 34 09AZ .

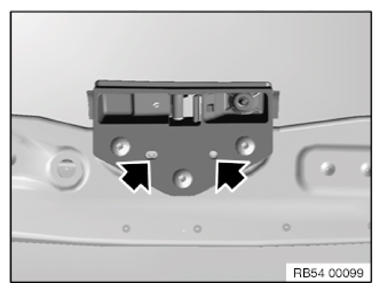

Fig 2: Locating Base Plate Centering Bore

Courtesy of BMW OF NORTH AMERICA, INC.
