54 34 124 Removing and installing/replacing front left or right side linkage cover
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
Carefully raise roof liner.

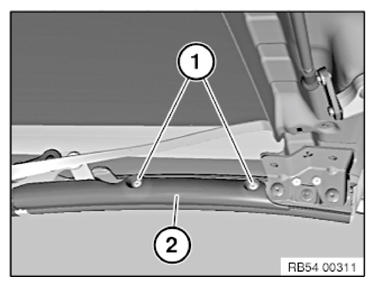

Release screws (1) and remove trim (2).
Installation note:
Apply Loctite to screws.
Tightening torque 54 34 07AZ .
Installation note:

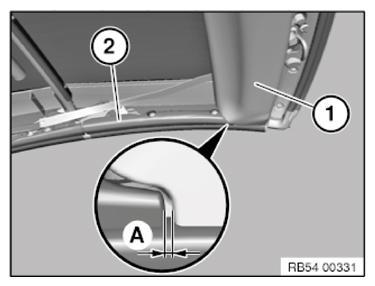

Gap dimension between cowl panel cover (1) and linkage cover (2).
A. = 5 mm
