54 34 060 Removing and installing/replacing Bowden cables for soft top compartment lid lock

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Remove snap rings (1).

Unhook Bowden cable nipple (2).

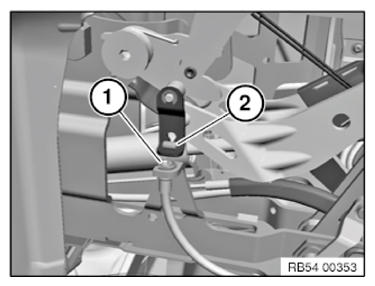

Fig 1: Identifying Snap Rings And Bowden Cable Nipple

Courtesy of BMW OF NORTH AMERICA, INC.

Remove snap ring (1).

Pull off Bowden cable nipple.

NOTE: Mark position of nuts (2) and transfer to new Bowden cable.

Slacken nuts.

Installation note:

ADJUST soft top compartment lid lock.

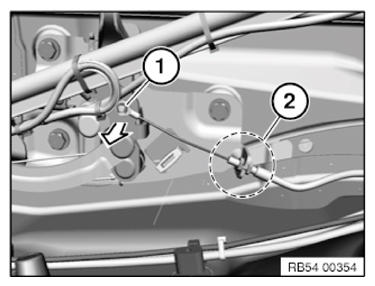

Fig 2: Pulling Off Bowden Cable Nipple

Courtesy of BMW OF NORTH AMERICA, INC.
