54 34 018 Removing and installing/replacing the soft top compartment

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Open convertible top compartment lid until all hydraulic cylinders are completely extended.

Support soft top compartment lid in SERVICE POSITION .

Fig 1: Identifying Convertible Top Compartment Lid

G04781201

Courtesy of BMW OF NORTH AMERICA, INC.

Drill the rivet plate out to the rivet shank.

Installation note:

Deburr remaining rivets with nipper pliers.

Drive the riveting mandrel out with a hammer and punch.

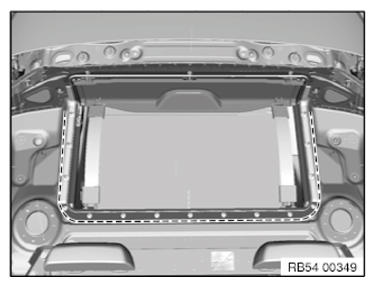

Fig 2: Identifying Rivet Plate Hole Drilling Area

G10047819

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Follow the rivet sequence according to the numbering.

Fit rivets (4) in direction of arrow from inside outwards

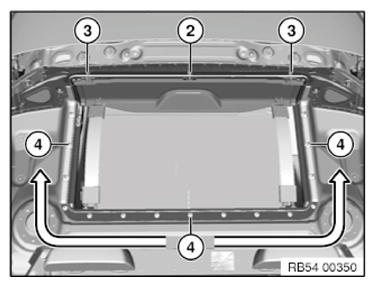

Fig 3: Riveting Sequence

G10047820

Courtesy of BMW OF NORTH AMERICA, INC.

Slightly raise the soft top compartment and unlock and disconnect the plug connection.

Pull out soft top compartment upward.

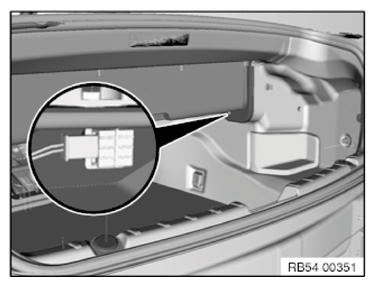

Fig 4: Identifying Soft Top Compartment Plug Connection

G10047821

Courtesy of BMW OF NORTH AMERICA, INC.
