12 52 030 Removing the holder for the control units (S63 B44 T 0)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Switch off ignition.
Remove ACOUSTIC COVER
Release DME CONTROL UNIT, CYLINDER 1-4 , and set aside, do not remove.
Release DME CONTROL UNIT, CYLINDER 5-8 , and set aside, do not remove.

Release screws (1).

Tightening torque 12 52 1AZ .

Release nut (2) and detach ground cable.

Tightening torque 12 52 2AZ .

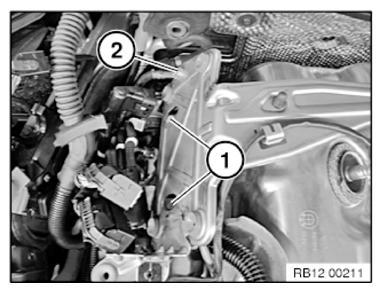

Fig 1: Identifying Nut And Screws Of Ground Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 12 52 1AZ .

Release nut (2) and detach ground cable.

Tightening torque 12 52 2AZ .

Fig 2: Identifying Ground Cable Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Detach oxygen sensor cable from clamps (1).

Feed out holder for control units (2) and remove.

Fig 3: Identifying Oxygen Sensor Cable From Clamps And Holder For Control Units

Courtesy of BMW OF NORTH AMERICA, INC.
