17 21 500 Rinse gearbox oil cooler and lines of twin-clutch gearbox

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

NOTE: Follow operations for:
Installing a new or replacement transmission.

Procedure:

Double twin-clutch gearbox removed.

Connect the respective adapters to all oil pipes leaving the double TCT (see description below).

Use quick-release coupling to connecting line 17 2 019 from oil dispenser unit.

Use quick-release coupling to connect drain line 17 2 018 .

Hold and direct open end of drain line into a suitable drip tray.

Using oil dispenser unit, flush approx. 1 liter of transmission fluid (refer to OPERATING FLUIDS ) through oil lines and transmission oil cooler.

Arrangement of flushing devices for TCT

Reposition quick-release couplings. Flush oil lines/transmission oil cooler in opposite direction with approx. 1 liter of transmission fluid (refer to OPERATING FLUIDS ).

Disconnect quick-release couplings.

Remove adapter.

NOTE: Dispose of flushing oil correctly.
Do not reuse under any circumstances.

Press hydraulic lines (1) into adapters (2).

Slide clamping bracket (3) into guides and secure with screw (4).

Fig 1: Identifying Hydraulic Lines, Adapters, Clamping Bracket And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

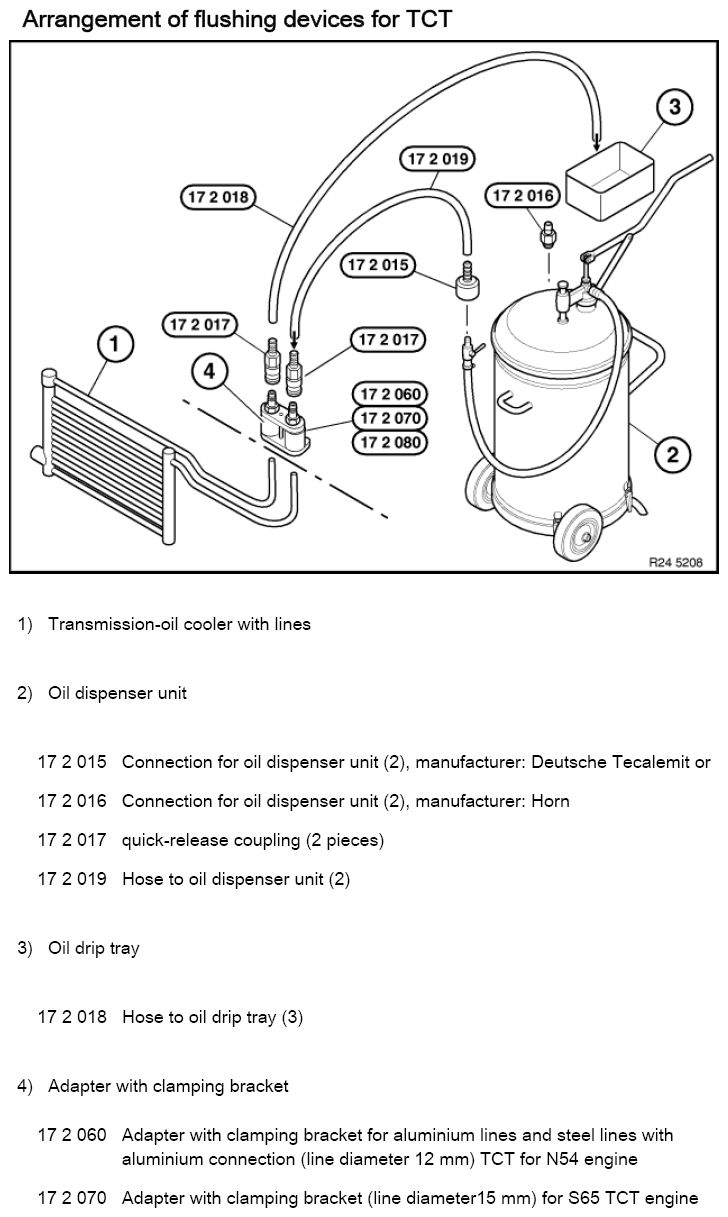

Arrangement of flushing devices for TCT

Fig 2: Identifying TCT Flushing Devices Arrangement

Courtesy of BMW OF NORTH AMERICA, INC.

Transmission-oil cooler with lines
Oil dispenser unit
17 2 015 Connection for oil dispenser unit (2), manufacturer: Deutsche Tecalemit or

17 2 016 Connection for oil dispenser unit (2), manufacturer: Horn

17 2 017 quick-release coupling (2 pieces)

17 2 019 Hose to oil dispenser unit (2)
Oil drip tray
17 2 018 Hose to oil drip tray (3)
Adapter with clamping bracket
17 2 060 Adapter with clamping bracket for aluminum lines and steel lines with aluminum connection (line diameter 12 mm) TCT for N54 engine

17 2 070 Adapter with clamping bracket (line diameter 15 mm) for S65 TCT engine
