61 31 339 Replace the handle cover for the gear selector switch (Sport)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 460

Lever out the display (1) with a suitable tool.

NOTE: Display (1) is glued on.

Installation note:

Remove the protective film from the back of the display before installing.

Make sure display (1) is correctly seated!

Fig 1: Pulling Out Display

G09928880

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque 61 31 5AZ .

NOTE: To tighten screws, use special tool 00 9 460 .

Fig 2: Identifying Gear Selector Switch Screw (Sport)

G09928881

Courtesy of BMW OF NORTH AMERICA, INC.

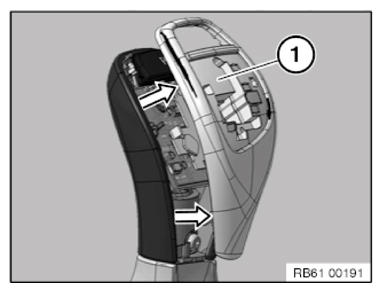

Zinc plated top shell design:

Remove top shell (1).

Fig 3: Identifying Gear Selector Top Shell

G10048291

Courtesy of BMW OF NORTH AMERICA, INC.

Ceramic top shell design:

Remove top shell (1).

NOTE: Hold-down device (2) is seated loosely in the top shell (1).

Installation note:

Make sure hold-down device (2) is correctly seated in upper shell (1)!

Fig 4: Removing Top Shell

G09928883

Courtesy of BMW OF NORTH AMERICA, INC.
