61 31 195 Removing and installing (replacing) front controller

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Risk of damage!
The button for the controller must not be removed!

Necessary preliminary tasks:

Remove side clamp on center console. See 51 16 178 REMOVING AND INSTALLING (REPLACING) SIDE CLIP AT CENTER CONSOLE .

Release screws (1).

Tightening torque 61 31 2AZ .

Remove controller (2) from side clamp on center console cover (3).

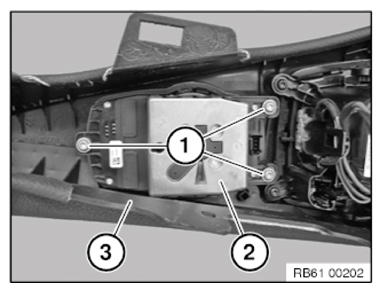

Fig 1: Identifying Controller, Center Console Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/CODING .
