61 31 172 Removing and installing/replacing switch for electromechanical parking brake (M6 with twin-clutch gearbox)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

DISCONNECT NEGATIVE BATTERY CABLE (to avoid fault memory entries)
Remove center console cover. See 51 16 160 REMOVING AND INSTALLING/REPLACING CENTER CONSOLE COVER .

Release screws (1).

Remove switch for electromechanical parking brake (2) from center console switch center (3).

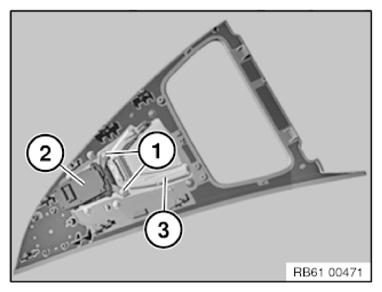

Fig 1: Identifying Electromechanical Parking Brake Switch, Center Console Switch And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Release screws (1).

Release side catches (2).

Remove cover (3) from switch for electromechanical parking brake (4).

Fig 2: Identifying Electromechanical Parking Brake, Cover, Side Catches, Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retaining elements (1) on cover (2) must not be damaged or missing.

Fig 3: Identifying Retaining Elements On Cover

Courtesy of BMW OF NORTH AMERICA, INC.
