61 31 043 Removing and installing roof switch center

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 325

IMPORTANT: Follow instructions for handling light bulbs (INTERIOR LIGHTING) .

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

Carefully unclip front left switch cluster (1) with special tool 00 9 325 and remove.

Installation note:

Make sure roof switch cluster is correctly seated.

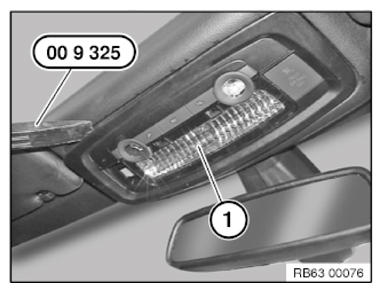

Fig 1: Removing Front Left Switch Cluster Using Special Tool 00 9 325

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Disconnecting the plug connection for the SOS emergency call button results in fault entries in the telephone control unit (restriction in the emergency call system).
After fitting, read out fault memory and if necessary delete entries.
