61 31 038 Removing and installing/replacing switch for front passenger airbag deactivation

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove side panel on dashboard. See 51 45... REMOVING AND INSTALLING/REPLACING SIDE PANEL ON DASHBOARD (WITH SWITCH FOR FRONT PASSENGER AIRBAG DEACTIVATION) ON THE LEFT AND RIGHT) .

Release latch mechanisms (3) in direction of arrow.

Feed switch for front passenger airbag deactivation (2) out of side cover on dashboard (1).

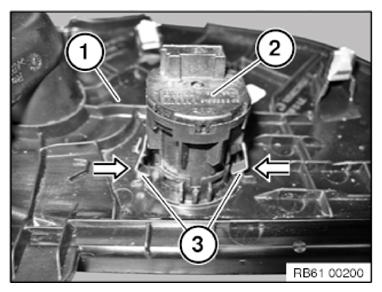

Fig 1: Releasing Front Passenger Airbag Deactivation Switch Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Switch cutout of dashboard side panel (1) is provided with a position code.

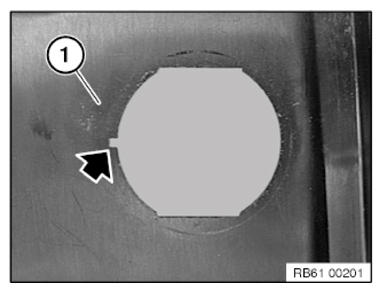

Fig 2: Locating Dashboard Side Panel Cutout

Courtesy of BMW OF NORTH AMERICA, INC.
