32 41 285 Replacing the oil level sensor for oil reservoir N63T

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove front left suspension cross-brace. See 51 71... REMOVING AND INSTALLING/REPLACING (FRONT) LEFT OR RIGHT SUSPENSION CROSS-BRACE .
Remove intake port for air filter housing. See 13...... REMOVING INTAKE DUCT (N63) .

Release screws (1) from oil reservoir (2).

Tightening torque 32 41 1AZ/2AZ

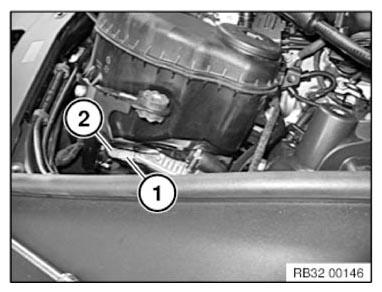

Fig 1: Identifying Oil Reservoir Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Raise the oil reservoir and/or push it forward in order to gain better access to plug connection (1).

Disconnect plug connection (1).

Turn level switch (2) anti-clockwise through approx. 45° and remove towards bottom.

Fig 2: Identifying Level Switch And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
