61 35 179 Removing and installing (replacing) rain/light/solar and condensation sensor (from 07/2012)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Observe the INFORMATION ON PROTECTION FROM ELECTROSTATIC DISCHARGE .

Necessary preliminary tasks:

Remove interior mirror. See 51 16 063 REMOVING AND INSTALLING/REPLACING INTERIOR MIRROR (OVERVIEW) .

Removal:

Disconnect connector (1).

Unlock rain/light/solar and condensation sensor (2) at metal spring (3).

For this purpose, push against metal spring (3) on both sides and release lock (4) using a screwdriver.

IMPORTANT: Risk of damage!
After releasing lock, wait approx. 30 min. at 20°C for silicone surface to relax.

Fig 1: Identifying Rain/Light/Solar And Condensation Sensor, Metal Spring, Sheet Metal Tabs

Courtesy of BMW OF NORTH AMERICA, INC.

Pull the rain/light/solar and condensation sensor (1) slowly from holder (2) in direction of arrow.

Fig 2: Pulling Rain/Light/Solar And Condensation Sensor From Holder

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage!
The silicone-coated surface (1) on the rain/light/solar and condensation sensor must not be touched or damaged.

When replacing the windscreen, immediately install the rain/light/solar and condensation sensor into the new windscreen following removal.

Fig 3: Identifying Silicone-Coated Surface On Rain/Light/Solar And Condensation Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage!
The silicone-coated surface (1) on the windscreen must not be touched or damaged.

Fig 4: Identifying Silicone-Coated Surface On Windscreen

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carefully clean windscreen at contact area with the rain/light/solar and condensation sensor. Remove all silicone residues.

Fig 5: Identifying Silicone-Coated Surface On Windscreen

Courtesy of BMW OF NORTH AMERICA, INC.

Remove protective cover (1) from new rain/light/solar and condensation sensor.

Fig 6: Identifying Rain/Light/Solar And Condensation Sensor Protective Cover

Courtesy of BMW OF NORTH AMERICA, INC.

The silicone-coated surface (1) on the rain/light/solar and condensation sensor must not be touched or damaged.

Fig 7: Identifying Silicone-Coated Surface On Rain/Light/Solar And Condensation Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

IMPORTANT: Risk of damage!
The silicone-coated surface on the rain/light/solar and condensation sensor must not be touched or damaged.

Feed the rain/light/solar and condensation sensor (1) into holder (2) in direction of arrow.

Fig 8: Feeding Rain/Light/Solar And Condensation Sensor Into Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Connect connector (1) only after the rain/light/solar and condensation sensor has been locked.

Press on the rain/light/solar and condensation sensor (2) at the metal spring (3) in a center position.

To lock, consecutively push down both sheet metal tabs (4) on each side.

Fig 9: Identifying Rain/Light/Solar And Condensation Sensor, Metal Spring, Sheet Metal Tabs

Courtesy of BMW OF NORTH AMERICA, INC.

Connect connector (1) with the rain/light/solar and condensation sensor (2).

Installation note:

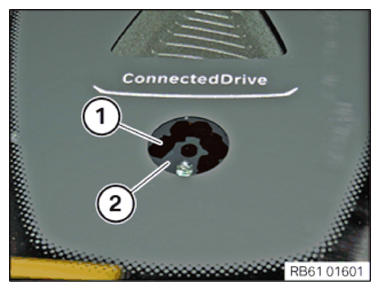

Visible shades (1 and 2) do not have any air pockets, but show the optical element of the sensor.

Visible shades (1 and 2) do not represent any functional limitation.

Fig 10: Identifying Visible Shades

Courtesy of BMW OF NORTH AMERICA, INC.

INITIALIZE SENSOR .

NOTE:

Encoding is performed automatically by JBBFE .

Required reworking:

Install interior mirror. See 51 16 063 REMOVING AND INSTALLING/REPLACING INTERIOR MIRROR (OVERVIEW) .
