61 31 362 Removing and installing (replacing) wireless remote control

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

Necessary preliminary tasks:

DISCONNECT NEGATIVE BATTERY CABLE
Remove cover on ornamental grille for air outlet. See 51 46 026 REMOVING AND INSTALLING OR REPLACING FRONT AIR OUTLET TRIM GRILLE .

Unfasten plug connection (1) and disconnect.

Release expanding rivet (2) and remove control unit (3).

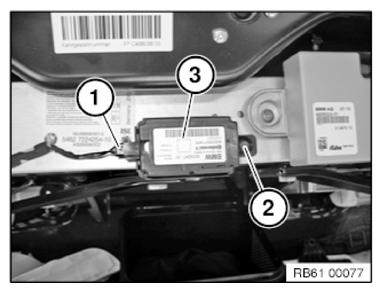

Fig 1: Identifying Control Unit, Expanding Rivet, Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING AND ENCODING .
