61 12 013 Replacing the battery earth lead
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Observe safety informations
See 61 20... INFORMATION ON AGM BATTERY
or 61 00... NOTES FOR DISCONNECTING AND CONNECTING BATTERY
for handling vehicle battery.
Observe the notes on the INTELLIGENT BATTERY SENSOR IBS .
Observe the notes on the INTELLIGENT BATTERY SENSOR IBS .
Necessary preliminary work:
- Disconnect BATTERY EARTH LEAD

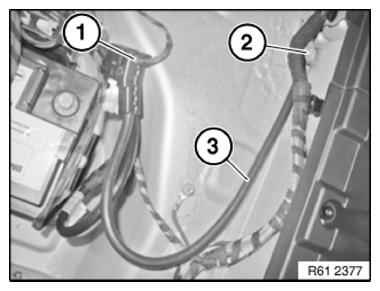

Disconnect plug connection (1).
Remove nut (2) and battery earth lead (3).
Tightening torque 61 21 6AZ .
