33 00... Rear axle: wheel/chassis alignment check must be carried out after the following work (640i, 640i xDrive, 650i, 650xi)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

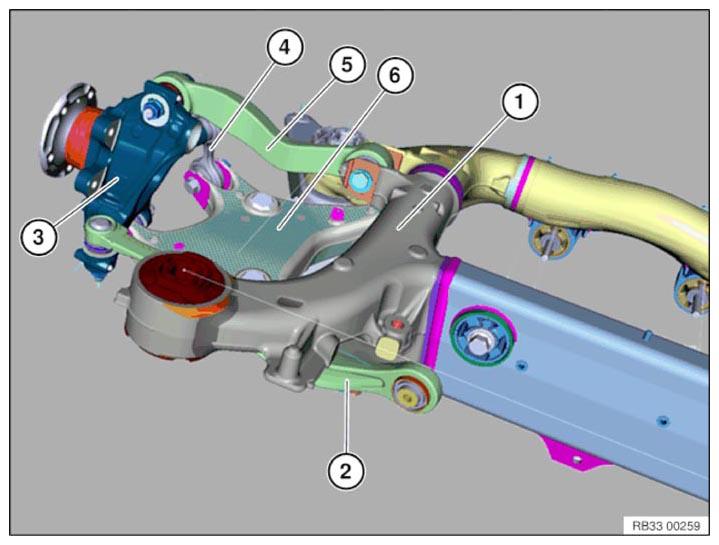

Fig 1: Identifying Swinging Arm And Rear Axle Support

Courtesy of BMW OF NORTH AMERICA, INC.

A WHEEL/CHASSIS ALIGNMENT CHECK must be carried out after the following work:

Release the following screw connection:
- Swinging arm, front/rear, to rear axle support
- Swinging arm to integral link/wheel carrier
- Control arm to rear axle support
- Wishbone to rear axle support/wheel carrier
Replacement of following parts:
1. Rear axle support
2. Toe arm
3. Wheel carrier
4. Integral link
5. Wishbone
6. Swinging arm
