33 00... Rear axle: wheel alignment check must be carried out after the following work (M6)
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
A WHEEL ALIGNMENT CHECK must be carried out after the following work:

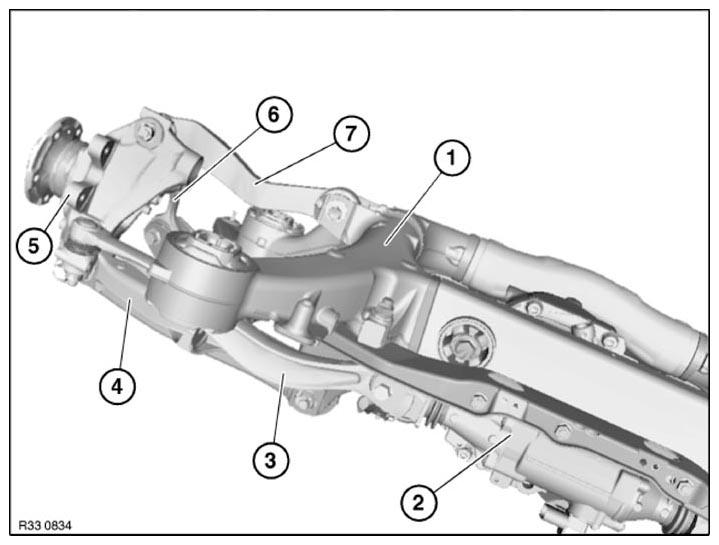

- Release the following screw connection:
- Swinging arm, front/rear, to rear axle support
- Swinging arm to integral link/wheel carrier
- Guide arm to rear axle support/HSR unit
- Wishbone to rear axle support/wheel carrier
- Replacement of following parts:
- Rear axle support
- HSR actuator
- Toe arm
- Swinging arm
- Wheel carrier
- Integral link
- Wishbone
