00..... Raising vehicle with trolley jack

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Observe the following trolley-jack-related instructions:

Only trolley jacks sold or approved by BMW/MINI, with a rubber plate on their mounting, may be used!
Trolley jacks must be regularly serviced and always checked for functional reliability before they are used!
Check the rubber plate on the trolley jack prior to each use, replacing if necessary.

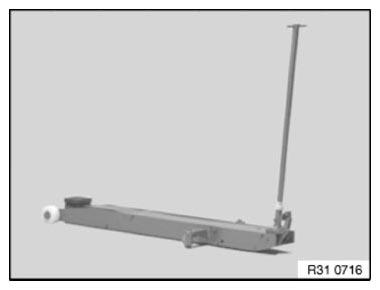

Fig 1: Identifying Trolley Jack
Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: All-wheel drive vehicles may only be raised with the stiffening plate fitted on the front axle!
Raising directly on the front axle support without stiffening plate is not permitted!

WARNING: The vehicle may be raised with a trolley jack only at the following mounting point!

Car jacking point
Side car jacking points
Strut support

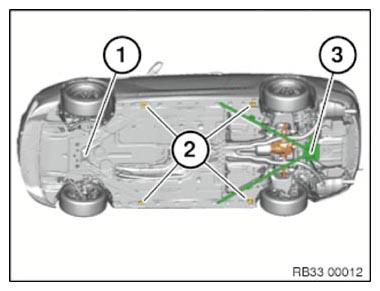

Fig 2: Identifying Car Jacking Points
Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Never raise the vehicle by the rear axle final drive (1) or by the struts (2)!

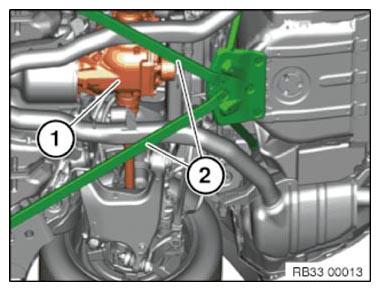

Fig 3: Identifying Rear Axle Final Drive And Struts

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT:

Risk of damage!

Jacking point (1) must be present!

Align the rubber plate on the trolley jack to the jacking point (1) in such a way that there is no contact to adjacent components and that they are therefore not damaged.

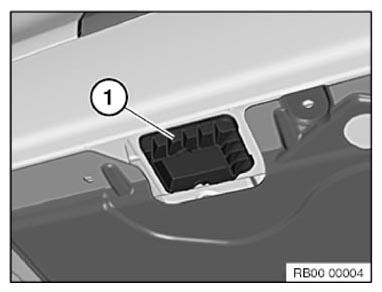

Fig 4: Identifying Car Jacking Point

Courtesy of BMW OF NORTH AMERICA, INC.
