33 10 155 Removing and installing/replacing right rear axle differential servomotor (M6)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove EXHAUST SYSTEM .

Unfasten plug connection (1) and disconnect.

Release screws (2) and place ground strap (3) to one side.

Tightening torque 33 11 7AZ .

Take out servomotor on the right past the output shaft.

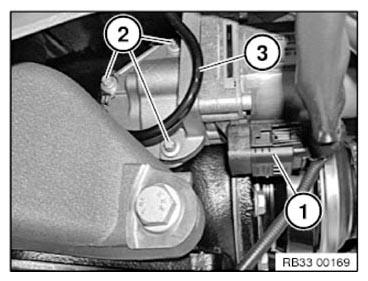

Fig 1: Identifying Ground Strap, Plug Connections And Screws

G10045391

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Clean sealing surface (1) and apply Loctite 5970 sealing compound.

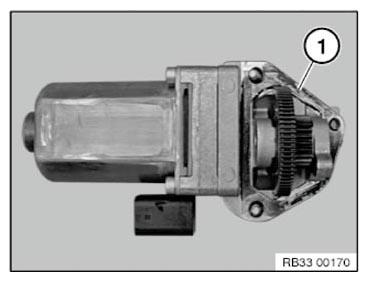

Fig 2: Identifying Differential Servomotor Sealing Surface

G10045392

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

During installation, it is absolutely essential to make sure that guide (1) on servomotor is seated in groove (2) in rear axle differential.

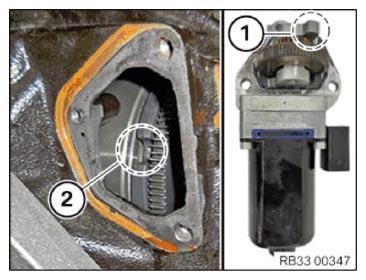

Fig 3: Identifying Servomotor Guide And Groove

G10045393

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Replacement only: Perform START-UP .
