33 11 021 Replacing radial shaft seal for drive flange on rear axle final drive (inserted propeller shaft)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT:

Use only approved OIL .

Failure to comply with this requirement will result in serious damage to the rear axle final drive!

Necessary preliminary work:

Remove THREE-HOLE FLANGE

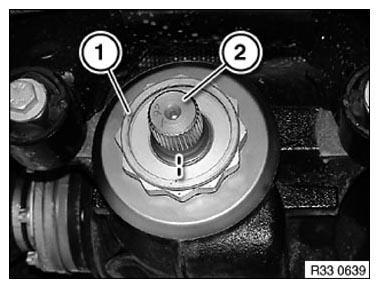

Remove retaining clip (1) and insert nut (2) with diaphragm seal.

Fig 1: Identifying Retaining Clip And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

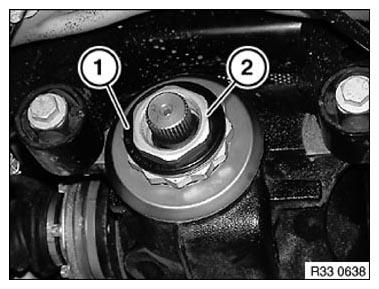

Mark position of flange nut (1) to bevel pinion (2).

Fig 2: Identifying Bevel Pinion And Flange Nut Mark Position

Courtesy of BMW OF NORTH AMERICA, INC.

Heat up the flange nut using a hot air blower.

NOTE: Do not heat up by more than necessary to undo the nut. Do not use open flames (e.g. welding torch) to heat up the components.

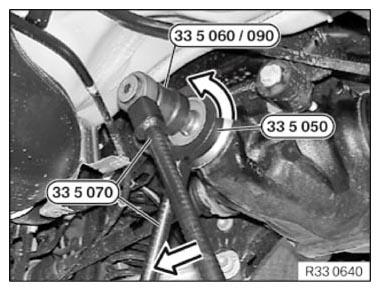

Release flange nut counter-clockwise with special tools 33 5 050 and 33 5 070 by gripping the bevel pinion with special tools 33 5 060 and 33 5 070 .

Fig 3: Turning Flange Nut

Courtesy of BMW OF NORTH AMERICA, INC.

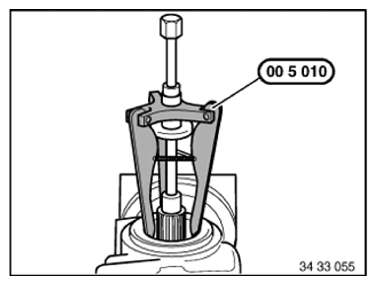

Pull out radial shaft seal with special tool 00 5 010 .

Fig 4: Pulling Radial Shaft Seal Using Special Tool (00 5 010)

Courtesy of BMW OF NORTH AMERICA, INC.

Coat sealing lips of new radial shaft seal and sealing surface on drive pinion with final drive oil.

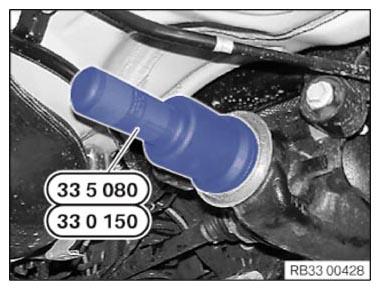

Drive in radial shaft seal with special tool 33 5 080 or 33 0 150 .

Fig 5: Identifying Special Tool (33 5 080)

Courtesy of BMW OF NORTH AMERICA, INC.

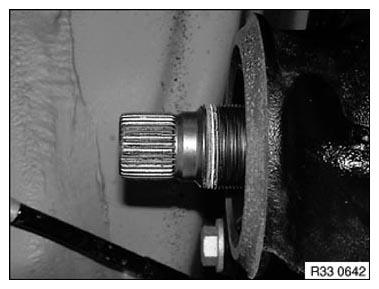

Clean bevel pinion thoroughly to remove remnants of screw locking agent.

Fig 6: Identifying Bevel Pinion Surface

Courtesy of BMW OF NORTH AMERICA, INC.

Check dust plate for damage, replace if necessary.

Attention!

Clean flange nut thoroughly to remove remnants of grease and screw locking agent.

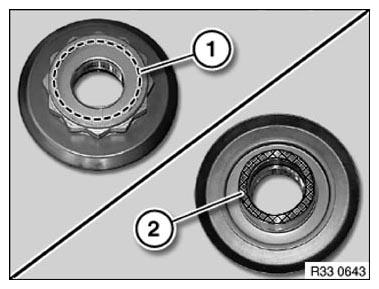

Pack collar insert (1) of flange nut with grease.

Apply a thin coating of grease to shaded area (2) of flange nut.

Coat at least four thread turns of the flange nut with "Drei Bond adhesive type 1385".

Fig 7: Identifying Flange Nut Grease Applying Area

Courtesy of BMW OF NORTH AMERICA, INC.

Attention!

In order to avoid damaging the rear axle final drive, do not under any circumstances tighten down the flange nut (1) beyond the marker point of the bevel pinion (2).

Fig 8: Identifying Bevel Pinion And Flange Nut Mark Position

Courtesy of BMW OF NORTH AMERICA, INC.

Place insert nut (2) with diaphragm seal in flange nut.

Introduce retaining clip (1).

Fig 9: Identifying Retaining Clip And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Check OIL LEVEL IN THE REAR AXLE FINAL DRIVE , correct if necessary.
