31... Front axle overview (M6)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

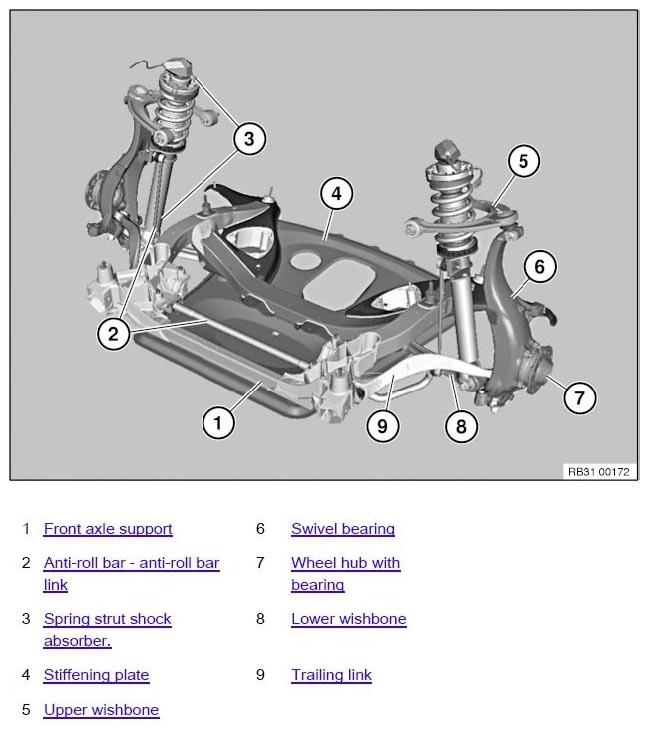

Fig 1: Overview Of Front Axle (M5 And M6)
G10045030Courtesy of BMW OF NORTH AMERICA, INC.
