31 60 535 Replacing two gaiters on output shaft(s), output shaft(s) removed (AWD)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Grip output shaft (1) in vice with aluminum clamping jaws.

NOTE:
  1. 2 = Joint, wheel side
  2. 3 = Joint, transmission side

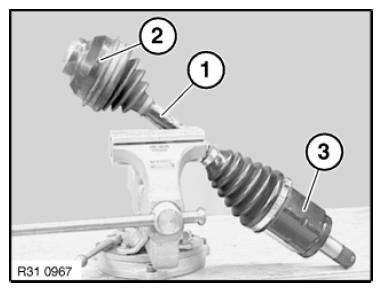

Fig 1: Holding Output Shaft Using Vice
G08512366Courtesy of BMW OF NORTH AMERICA, INC.

Replacing gaiter of joint on wheel side:

Release LOW PROFILE CLIP  (1) and clip (2).

Pull back rubber gaiter (3).

Installation note:

Feed gaiter (3) into groove of joint.

Fig 2: Pulling Rubber Gaiter
G08512367Courtesy of BMW OF NORTH AMERICA, INC.

Press off joint (1) via contact pressure of circlip on shaft (2).

Installation note:

Replace circlip.

Push on joint until circlip can be heard to snap into place.

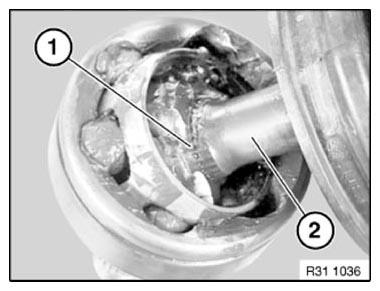

Fig 3: Identifying Shaft Joint
G09849173Courtesy of BMW OF NORTH AMERICA, INC.

Lift out circlip (1).

Installation note:

Install retaining ring (1).

Fig 4: Identifying Retaining Ring
G09849174Courtesy of BMW OF NORTH AMERICA, INC.

Pull off gaiter (1) over shaft (2).

Carefully clean all components with a cloth.

NOTE: Re-grease constant velocity joint with the grease from the repair kit.

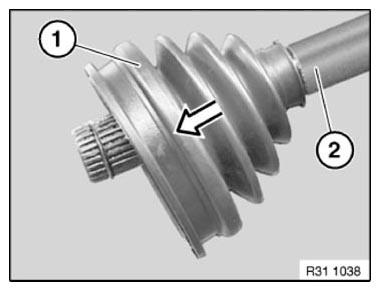

Fig 5: Pulling Shaft Gaiter
G09849175Courtesy of BMW OF NORTH AMERICA, INC.

Replacing gaiter of joint on gearbox side:

Release band clamps (1, 2).

Pull back rubber gaiter (3).

Detach joint housing (4).

Installation note:

Feed gaiter (3) into groove of joint housing (4).

Align band clamp (1) so that hook fastener is as at flat end of joint housing (4).

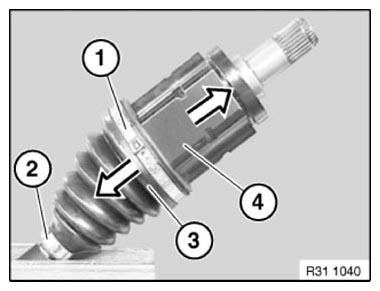

Fig 6: Detaching Joint Housing
G09849176Courtesy of BMW OF NORTH AMERICA, INC.

Remove circlip (1).

Installation note:

Install retaining ring (1).

Detach tripod element (2) from shaft (3).

Pull off gaiter over shaft (3).

Carefully clean all components with a cloth.

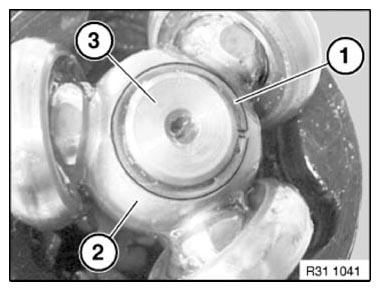

Fig 7: Identifying Shaft Tripod Element And Circlip
G09849177Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Flat side (2) of tripod element (1) must point to circlip.

NOTE: Re-grease constant velocity joint (tripod element) with the grease from the repair kit.

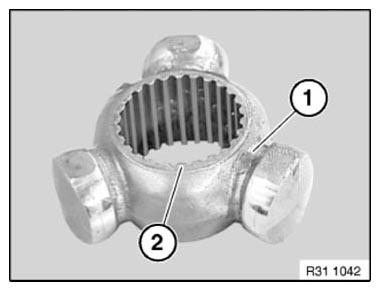

Fig 8: Identifying Shaft Tripod Element
G09849178Courtesy of BMW OF NORTH AMERICA, INC.
