67 16 010 Removing and installing/replacing left headlight vertical aim adjuster

WARNING: This page is about a different car, the 2003 BMW X5 and 2002 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

M62 only:

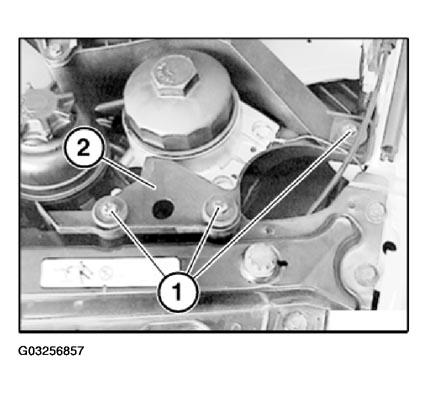

Release screws (1) and remove equipment carrier (2).

Fig 1: Releasing Equipment Carrier Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Up to 10/2003:

Subsequent work is described in:

67 16 011 REMOVING AND INSTALLING/REPLACING LEFT HEADLIGHT VERTICAL AIM ADJUSTER (XENON HEADLIGHT) .

From 10/2003:

Release screws (1) and remove cover (2) in direction of arrow.

Fig 2: Releasing Cover Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure seal of cover (2) is correctly seated.

Disconnect plug connection (1).

Fig 3: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (3).

Feed headlight vertical aim adjuster (2) with ball head (4) in direction of arrow out of associated fixture and pull out.

Installation:

Make sure ball head (4) is correctly seated in associated fixture.

All:

Installation:

Adjust headlights. Refer to 63 10 004 ADJUSTING HEADLIGHTS .
