13 71 150 Removing right clean air pipe (S63 B44 T 0)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove right AIR DUCT

Release screws (1).

Tightening torque 13 71 4AZ .

Unlock and detach engine vent line (2).

Disconnect clean air pipe (3) from exhaust turbocharger and remove.

Fig 1: Identifying Clean Air Pipe, Engine Vent Line And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

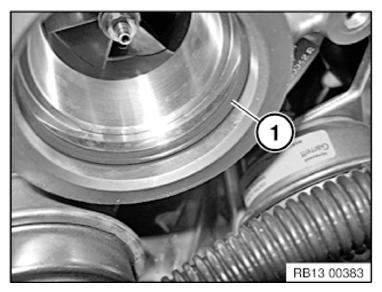

Renew sealing ring (1) and coat with light film of engine oil.

Fig 2: Identifying Sealing Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
