13 90 506 Replacing the left tank vent valve (N63 B40/B44 O 1)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Check stored fault message.
Switch off ignition.
Remove left CHARGE AIR COOLER .

Unlock connector (1) and remove.

Unlock hose (2) and detach.

Unlock hose (3) on intake plenum and detach.

Feed out and remove tank vent valve.

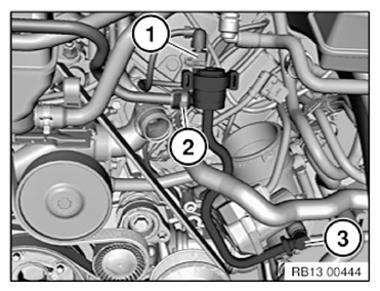

Fig 1: Identifying Intake Plenum Hose And Connector

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Read out the fault memory of the DME control unit.

Delete fault memory.
