0496850 614343 Crimping tool Minimum set: Measuring and testing equipment MP

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Universal crimping head for contacts up to a conductor cross-section of 0.35 - 2.5 mm² (replaces special tool 61 4 328 as from 03/2010)

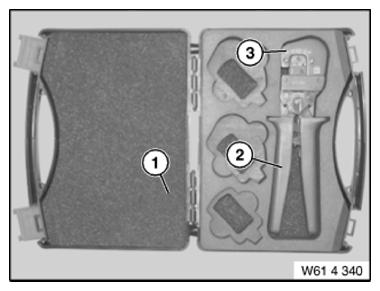

Fig 1: Identifying Crimping Tool (0496850)

Courtesy of BMW OF NORTH AMERICA, INC.
