65 12 000 Removing and installing/replacing speaker (front left or right door)

WARNING: This page is about a different car, the 2003 BMW X5 and 2002 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove front left or right door trim panel, refer to 51 41 000 REMOVING AND INSTALLING LEFT OR RIGHT DOOR TRIM PANEL .

Unfasten plug connection (1).

Release screws (2) and remove speaker (3).

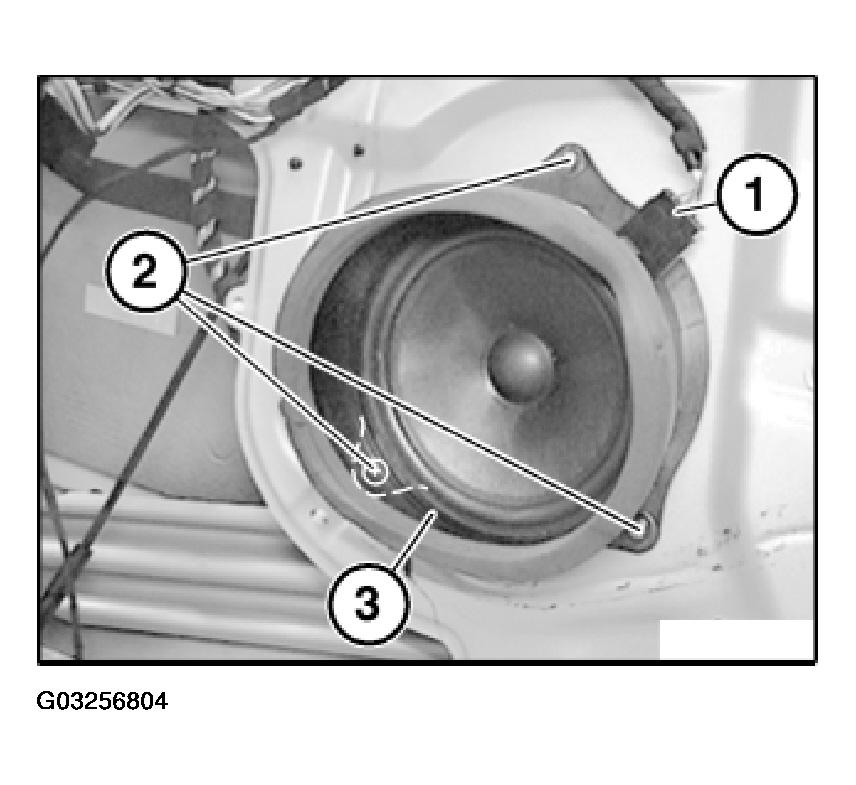

Fig 1: Removing Front Left Or Right Speaker
G03256804Courtesy of BMW OF NORTH AMERICA, INC.
