65 13 070 Removing and installing/replacing speaker (on window frame, left or right)

WARNING: This page is about a different car, the 2003 BMW X5 and 2002 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove front left or right door trim panel.

Gently press trim (1) to one side.

Disconnect plug connection (2).

Release screw (3) and remove speaker (4).

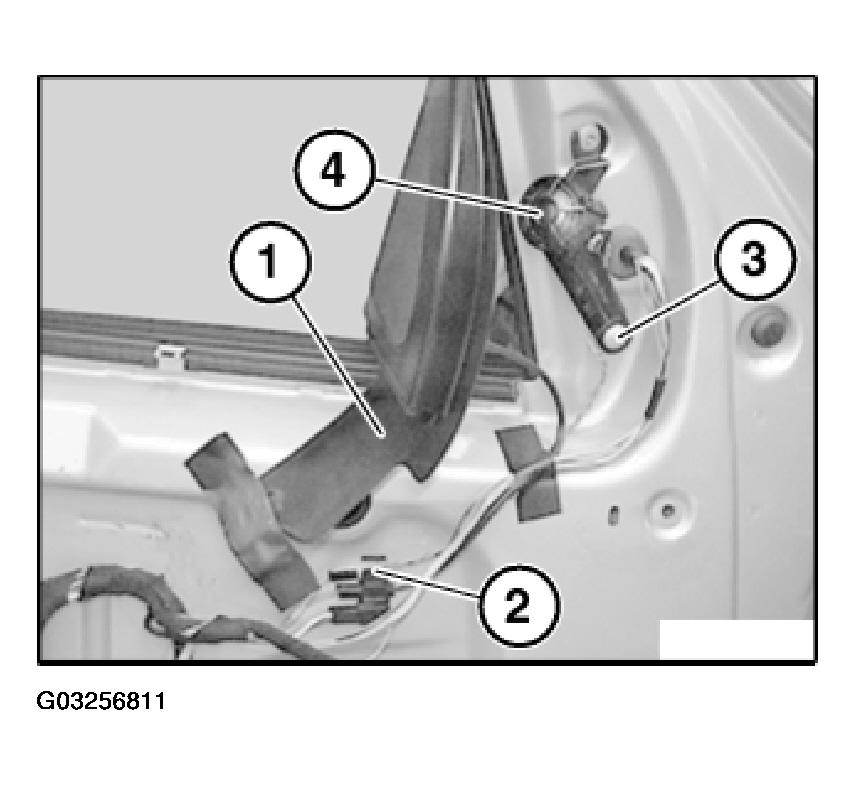

Fig 1: Removing Window Frame Speaker

Courtesy of BMW OF NORTH AMERICA, INC.
