65 13 050 Removing and installing/replacing speaker (in instrument panel, left or right)

WARNING: This page is about a different car, the 2003 BMW X5 and 2002 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For purposes of clarity, illustration shows component removed.

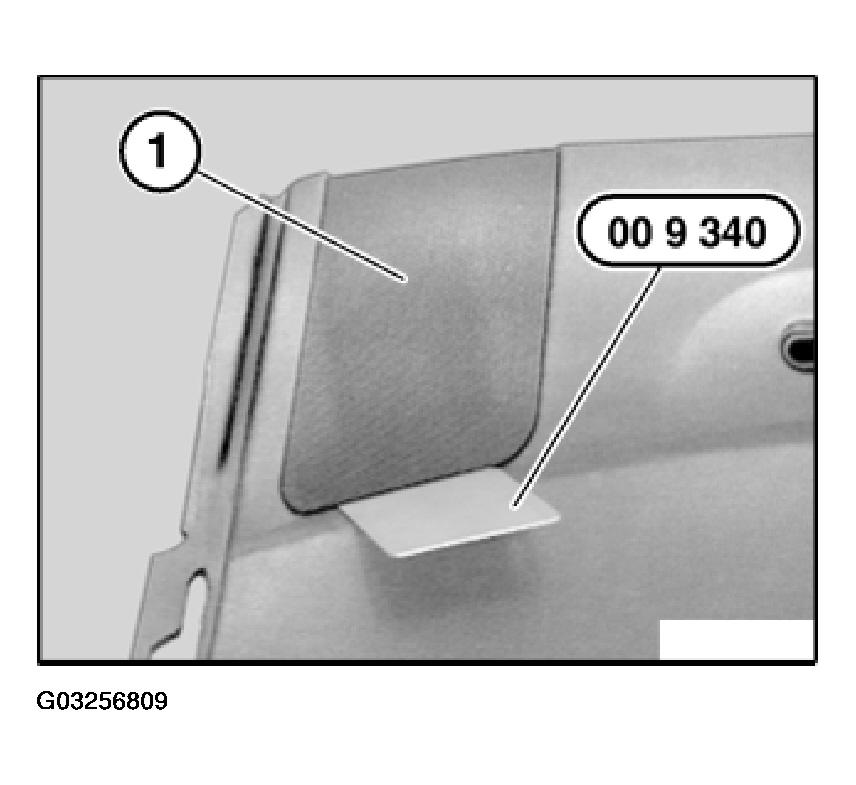

Lever out trim (1) with special tool 00 9 340.

Fig 1: Levering Out Trim

Courtesy of BMW OF NORTH AMERICA, INC.

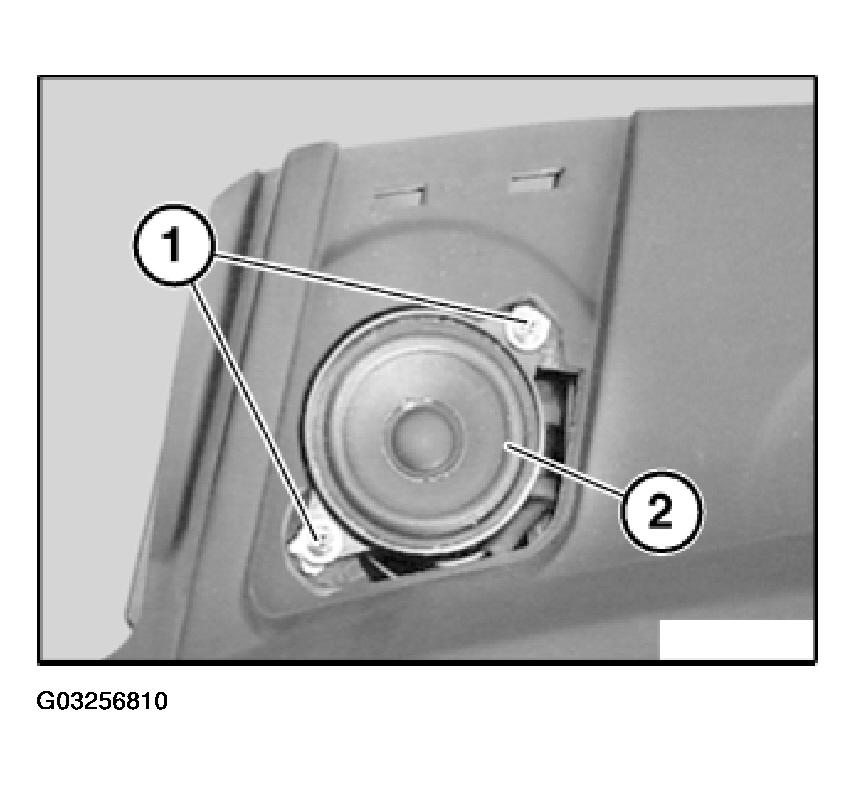

Release screws (1) and remove speaker (2).

Disconnect plug.

Fig 2: Removing Speaker

Courtesy of BMW OF NORTH AMERICA, INC.
