65 11 055 Removing and installing/replacing radio receiver (with board monitor)

WARNING: This page is about a different car, the 2003 BMW X5 and 2002 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

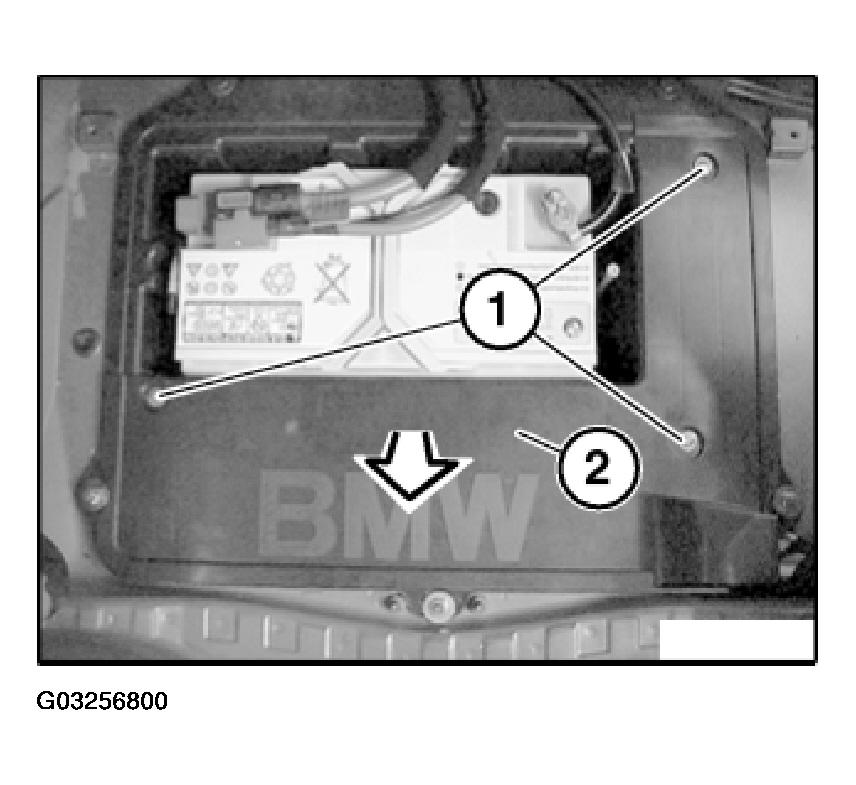

Loosen screws (1).

Remove multifunction tray (2) towards top.

Fig 1: Removing Multifunction Tray

Courtesy of BMW OF NORTH AMERICA, INC.

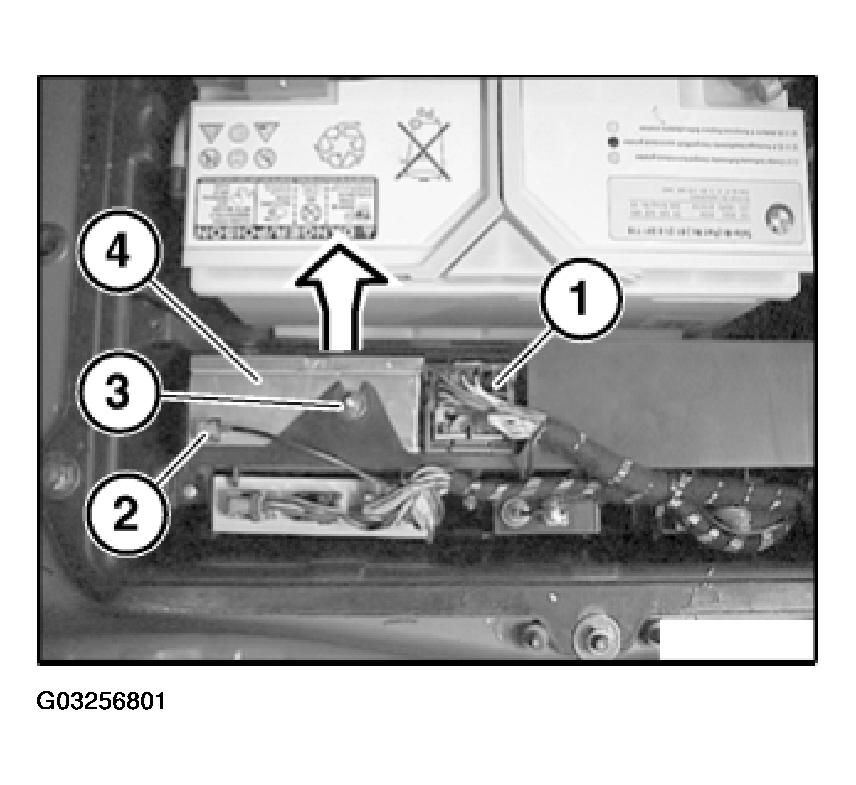

Unlock plug connections (1) and (2) and disconnect.

Loosen nut (3).

Feed out radio receiver (4) in direction of arrow and remove.

Fig 2: Unlocking Radio Receiver Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

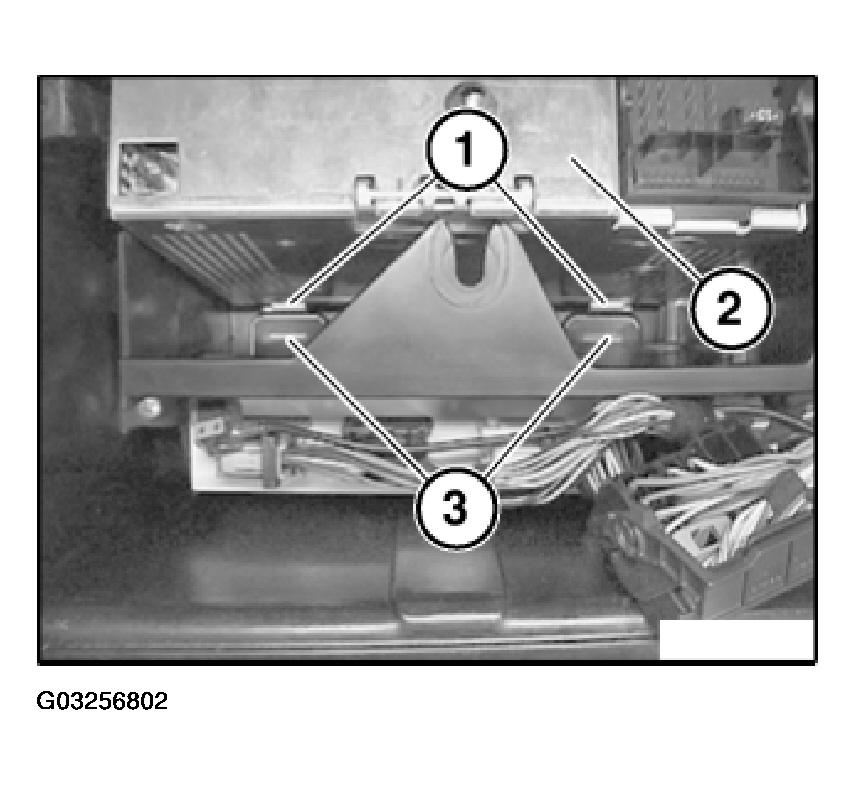

Metal tabs (1) of radio receiver (2) must be seated in mountings (3).

Fig 3: Identifying Metal Tabs Of Radio Receiver

Courtesy of BMW OF NORTH AMERICA, INC.
