61 13 ... Antenna elbow plug on radio receiver

WARNING: This page is about a different car, the 2003 BMW X5 and 2002 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Cut off faulty antenna angle plug directly after strain relief.

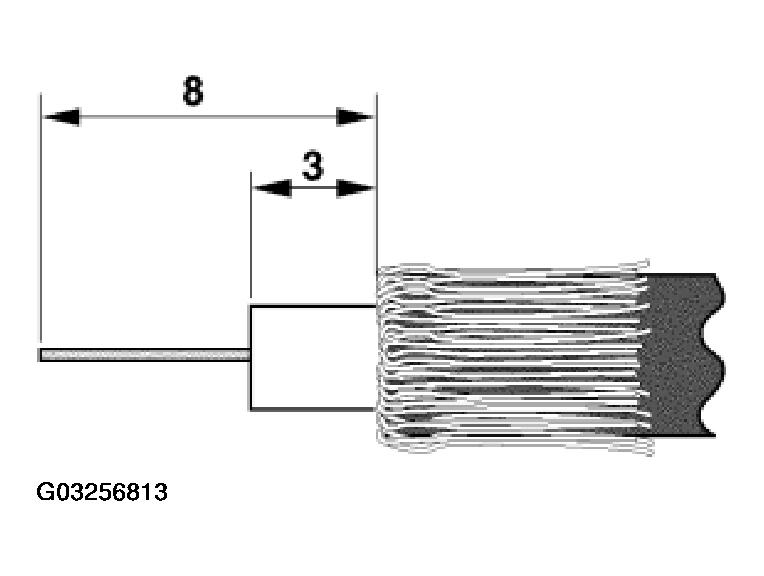

Carefully and with precision, strip insulation from antenna cable as illustrated (lengths given in mm).

Brush shield (copper braid) towards rear.

IMPORTANT: There must be no more copper wire protruding in the direction of the inner conductor on the inner conductor insulation (risk of short circuits).

Fig 1: Identifying Faulty Antenna Angle Plug

G03256813

Courtesy of BMW OF NORTH AMERICA, INC.

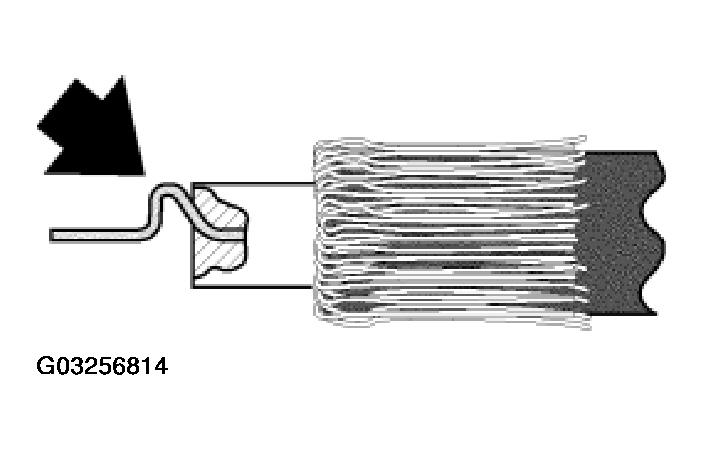

Create a loop on inner conductor.

Fig 2: Creating A Loop On Inner Conductor

G03256814

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Cover soldering area extensively in center console all round radio aperture.
Avoid blobs of melted solder in inside area.

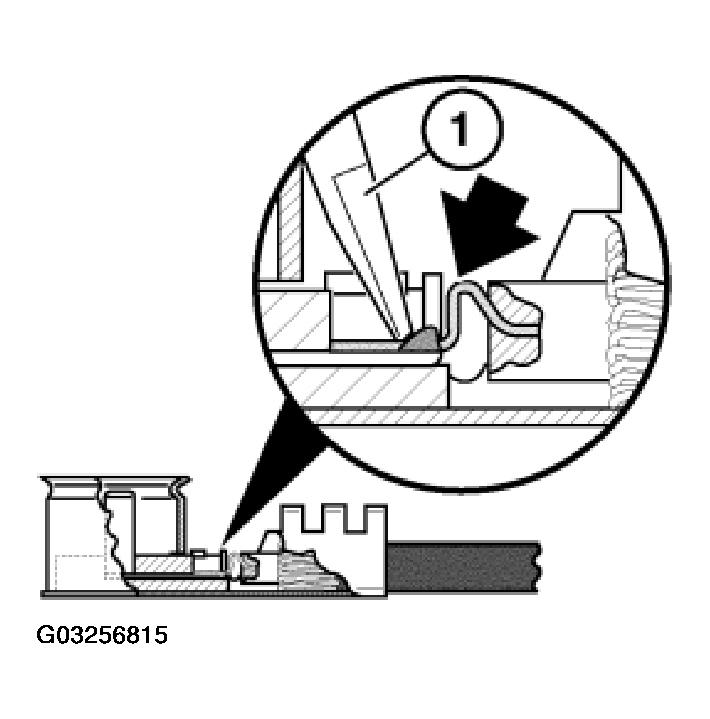

Fig 3: Identifying Matching Soldering Tip

G03256815

Courtesy of BMW OF NORTH AMERICA, INC.

Tin-plate center connection on antenna angle plug and stripped inner conductor.

Solder inner conductor on center connection with a small soldering iron (max. 50 watts) and matching soldering tip (1).

Gently push insulation forward to soldering point and pay attention to correct position of loop.

NOTE: The loop must not under any circumstances come into contact with the metal parts of the antenna plug.

Fig 4: Identifying Special Tool

G03256816

Courtesy of BMW OF NORTH AMERICA, INC.

Special tool 61 9 041 (hand pliers) in conjunction with special tool 61 9 044 (matrix) is used to crimp antenna angle plug.

Refer to repair instructions:

Special tools for wiring harness repairs

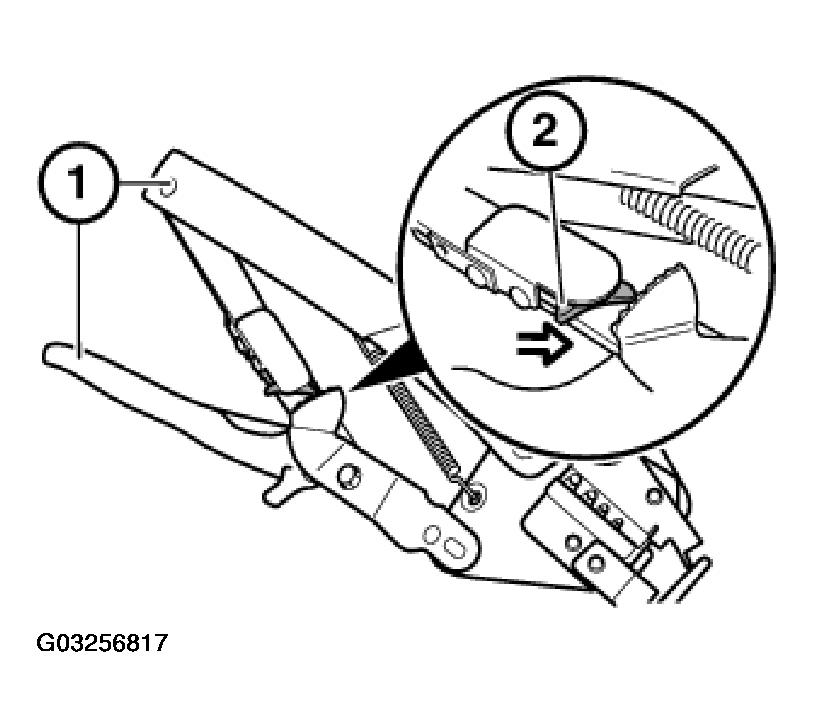

Unlock special tool 61 9 041:

Squeeze grips (1) lightly and push unlocking lever (2) in direction of arrow.

OR:

Compress handles as far as they will go, tool unlocks automatically.

Fig 5: Unlocking Special Tool

G03256817

Courtesy of BMW OF NORTH AMERICA, INC.

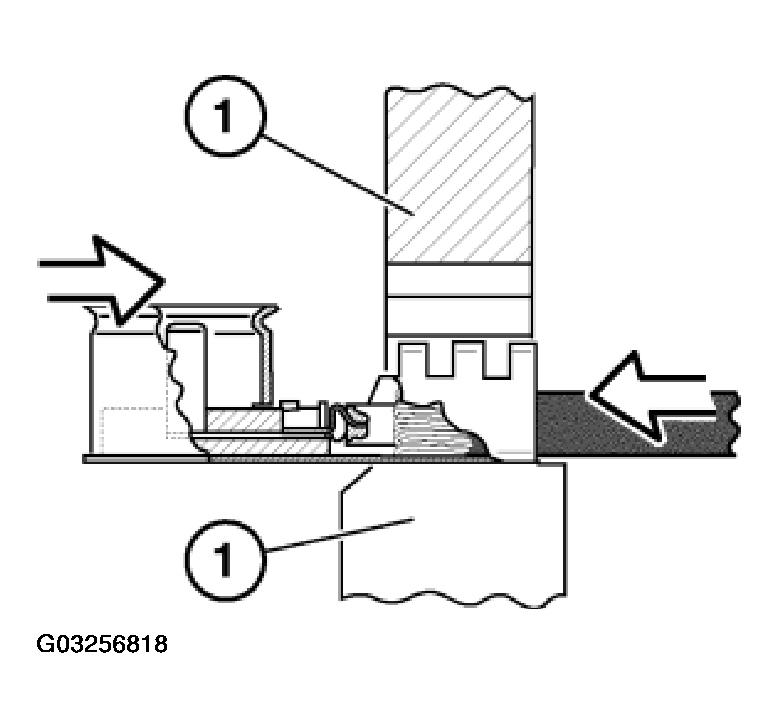

Place antenna angle plug with cable guide and strain relief in matrix (1).

Fig 6: Placing Antenna Angle Plug

G03256818

Courtesy of BMW OF NORTH AMERICA, INC.

Compress special tool 61 9 041 as far as it will go.

Special tool 61 9 041 unlocks automatically.

Remove antenna angle plug with antenna cable from special tool 61 9 044.

Fig 7: Compressing Special Tool

G03256819

Courtesy of BMW OF NORTH AMERICA, INC.
