SI number

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

01 18 08 (482)

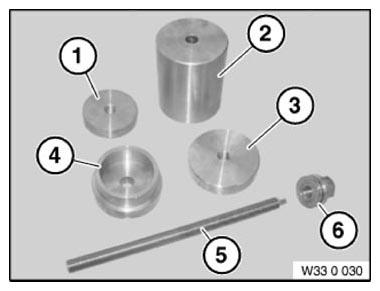

Fig 1: Identifying Device (0496495)

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

0496507 Washer
NOTE: Rubber mount puller not available separately, available only as part of complete SWZ set 33 0 030.
0496508 Bush
NOTE: Rubber mount puller not available separately, available only as part of complete SWZ set 33 0 030.
0496509 Washer
NOTE: Rubber mount feeding not available separately, available only as part of complete SWZ set 33 0 030.
0496510 Washer
NOTE: (Molding disc) Rubber mount feeding not available separately, available only as part of complete SWZ set 33 0 030.
0496511 Spindle
NOTE: (Spindle M14x1, 5) Not available separately, only via complete SWZ set 33 0 030.
0496512 Nut
NOTE: (Nut M14x1, 5 with thrust bearing) Not available separately, only via complete SWZ set 33 0 030.
