SI number

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

01 18 08 (482)

Consisting of:

0496500 Washer
NOTE: Remove rubber mount Only available as part of complete tool set 33 0 020 (83 30 0 496 494).

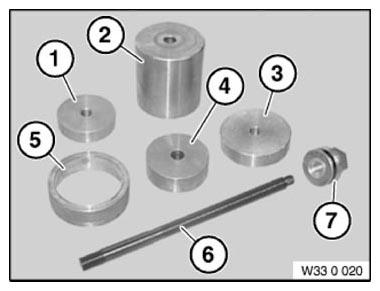

Fig 1: Identifying Device (0496494)
Courtesy of BMW OF NORTH AMERICA, INC.
0496501 Bush
NOTE: Remove rubber mount Only available as part of complete tool set 33 0 020 (83 30 0 496 494).
0496502 Washer
NOTE: (Shaped disc) Insert rubber mount Only available as part of complete tool set 33 0 020 (83 30 0 496 494).
0496503 Washer
NOTE: Insert rubber mount Only available as part of complete tool set 33 0 020 (83 30 0 496 494).
0496504 Guide
NOTE: (Guide bush) Insert rubber mount Only available as part of complete tool set 33 0 020 (83 30 0 496 494).
0496505 Spindle
NOTE: (Spindle M12x1.5) Spindle length 205 mm Only available as part of complete tool set 33 0 020 (83 30 0 496 494).
0496506 Nut
NOTE: (Nut M12x1.5 with thrust bearing) Only available as part of complete tool set 33 0 020 (83 30 0 496 494).
