SI number

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

01 01 07 (333)

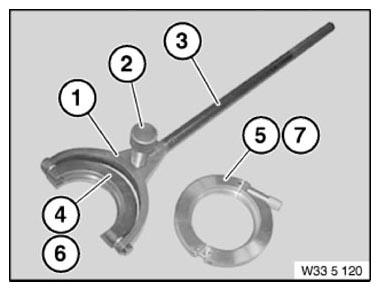

Fig 1: Identifying Device (0495851)

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

1 = 0495853 Basic body
NOTE: Only available via complete tool set 33 5 120 - > (83 30 0 495 851).
2 = 0495854 Screw
NOTE: (Knurled screw with thrust piece) available as part of set of special tools 33 5 120 -> (83 30 0 495 851) only.
3 = 0495855 Rod
NOTE: Only available via complete tool set 33 5 120 - > (83 30 0 495 851).
4 = 0495856 Shaped element
NOTE: (Shaped element) shaped element (bearing shell) available as part of set of special tools 33 5 120 -> (83 30 0 495 851) only.
5 = 0495857 Shaped element
NOTE: Sale of existing inventory then available as part of set of tools 33 5 120 -> (83 30 0 495 851) only.
7 = 0496795 Shaped part
NOTE: For driving output shaft into rear axle final drive.
6 = 0496765 Shaped part
NOTE: For pressing output shaft out of rear axle final drive. In conjunction with: 33 5 120 = 0495851
