SI number

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

08 12 14 (155)

Consisting of:

0493816 Basic body
NOTE: No longer available separately, only available as part of complete tool set 0493416 = 33 4 400.

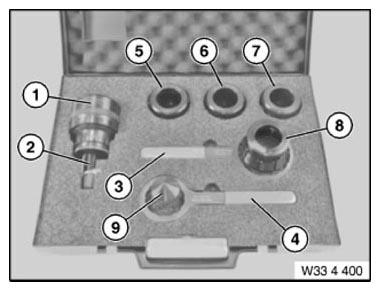

Fig 1: Identifying Device (0493416)
Courtesy of BMW OF NORTH AMERICA, INC.
0493817 Spindle
NOTE: No longer available separately, only available as part of complete tool set 0493416 = 33 4 400.
0493818 Wrench
NOTE: (Ignition key) Discontinued, only available via complete tool
0493819 Wrench
NOTE: (Ignition key) Discontinued, only available via complete tool
0493820 Pliers
NOTE: (Clamping ring (45 to 51 mm)) No longer available separately, only available as part of complete tool set 0493416 = 33 4 400.
0493821 Pliers
NOTE: (Clamping ring (50 to 55 mm)) No longer available separately, only available as part of complete tool set 0493416 = 33 4 400.
0494617 Pliers
NOTE: (clamping ring (55...61 mm)) Model series: E67 No longer available separately, only via complete tool set 0493416 = 33 4 400.
0496538 Ring
NOTE: (Clamping ring) Model series: F01, F02. See SI: 01 18 08 (482). Available only as complete special tool set 33 4 400.
0496539 Synchronizing key
NOTE: Series: F01, F02. See SI: 01 18 08 (482) Remaining inventories will be sold off and then it will no longer be available separately, only available as part of complete tool set 0493416 = 33 4 400.
