SI number

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

01 02 99 (417)

Consisting of:

0492398 Pipe
NOTE: (Threaded tube) Deletion, only available via tool set

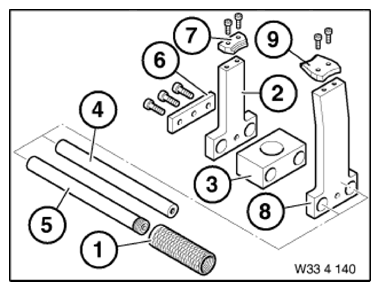

Fig 1: Identifying Device (0492397)
Courtesy of BMW OF NORTH AMERICA, INC.
0492399 Shaped part
NOTE: (Shaped part) 2 pieces Model series: E38, E39, E46 Deletion, only available via tool set
0492400 Shaped part
NOTE: (Shaped part)
0492401 Rod
NOTE: (Guide rod)
0492402 Rod
NOTE: (Guide rod) With thread dog point
0492403 Plate
NOTE: (Fixing plate) With screws Deletion, only available via tool set
0492404 Synchronizing key
NOTE: (Synchronizing key (2 x)) With screws - model series: E38, E39, E46 Deletion, only available via tool set
0492405 Shaped part
NOTE: (Shaped part) 2 pieces Model series: E39/2, E65, E67, RR1
0492406 Synchronizing key
NOTE: (Synchronizing key (2 x)) With countersunk screw - model series: E39/2, E65, E67, E87
