SI number

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

01 01 89 (989)

Consisting of:

0492389 Shaped element
NOTE: For positioning when pressing out the ball joint
0492390 Bush
NOTE: (Pressure bushing) For pressing the ball joint out of the wishbone
0492391 Shaped element
NOTE: For positioning the wishbone when pressing in the ball joint

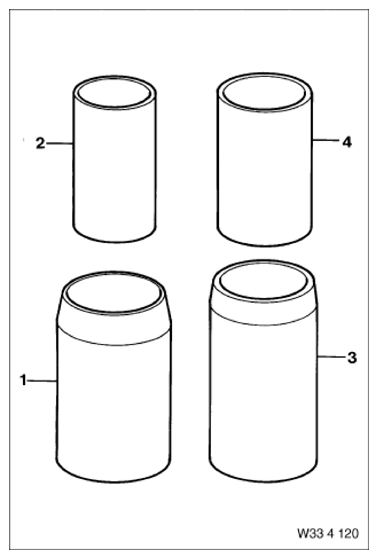

Fig 1: Identifying Device (0492388)
Courtesy of BMW OF NORTH AMERICA, INC.
0492392 Bush
NOTE: (Pressure bushing) For pressing the ball joint into the wishbone
