SI number

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

01 01 89 (989)

Consisting of:

  1. 0492384  Holding sleeve
    NOTE: (Support sleeve) For pressing out
  2. 0492385  Holding sleeve
    NOTE: (Press-out sleeve)
  3. 0492386  Holding sleeve
    NOTE: (Press-in sleeve)
  4. 0492387  Shaped element
    NOTE: For pressing in

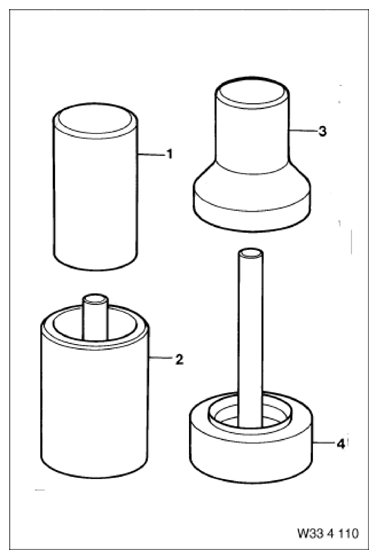

    Fig 1: Identifying Device (0492383)
    G10053020Courtesy of BMW OF NORTH AMERICA, INC.
