SI number

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

01 01 89 (989)

Consisting of:

  1. 0492379  Holding sleeve
    NOTE: (support sleeve) During extraction
  2. 0492380  Holding sleeve
    NOTE: (Press-out sleeve)
  3. 0492381  Holding sleeve
    NOTE: (Press-in sleeve)
  4. 0492382  Shaped element
    NOTE: For pressing in

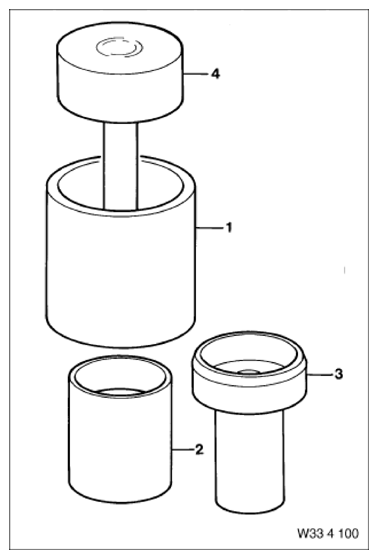

    Fig 1: Identifying Device (0492378)
    G10053015Courtesy of BMW OF NORTH AMERICA, INC.
