01 10 90 (288)

Consisting of:

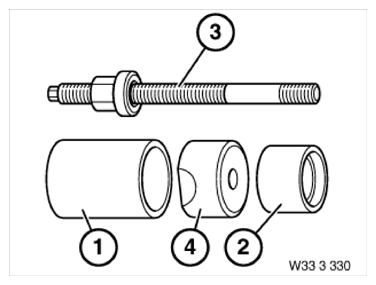

Fig 1: Identifying Device (0492322)

Courtesy of BMW OF NORTH AMERICA, INC.

0492323 Holding sleeve
NOTE: (Spacer sleeve) For pulling out/series: E36, E46
0492324 Holding sleeve
NOTE: (Extraction sleeve) Series: E36, E46
0492325 Spindle
NOTE: (Spindle with thrust nut) Replaced by 33 3 010/0 496 552
0492326 Holding sleeve
NOTE: (Spacer sleeve) For installing the ball joint, series: E31, E36, E38, E39, E46, E65, E66, E85
