0492143 331410 Device AM

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For determining the installation size of the bevel drive pinion in the rear axle final drive

Consisting of:

0492144 Holder
NOTE: (Dial gauge holder)
0492145 Washer
NOTE: (Measuring disc)

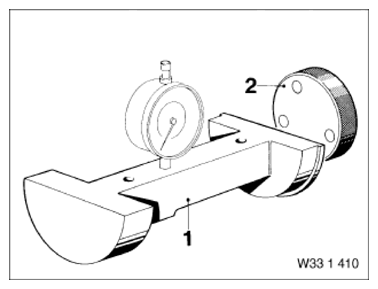

Fig 1: Identifying Device (0492143)
Courtesy of BMW OF NORTH AMERICA, INC.
